eMMC转接座改进3.3V/1.8V兼容

  [Copy link]
Post time: 2020-9-15 15:14:54
| Show all posts |Read mode
本帖最后由 技术支持007 于 2021-5-18 08:53 编辑

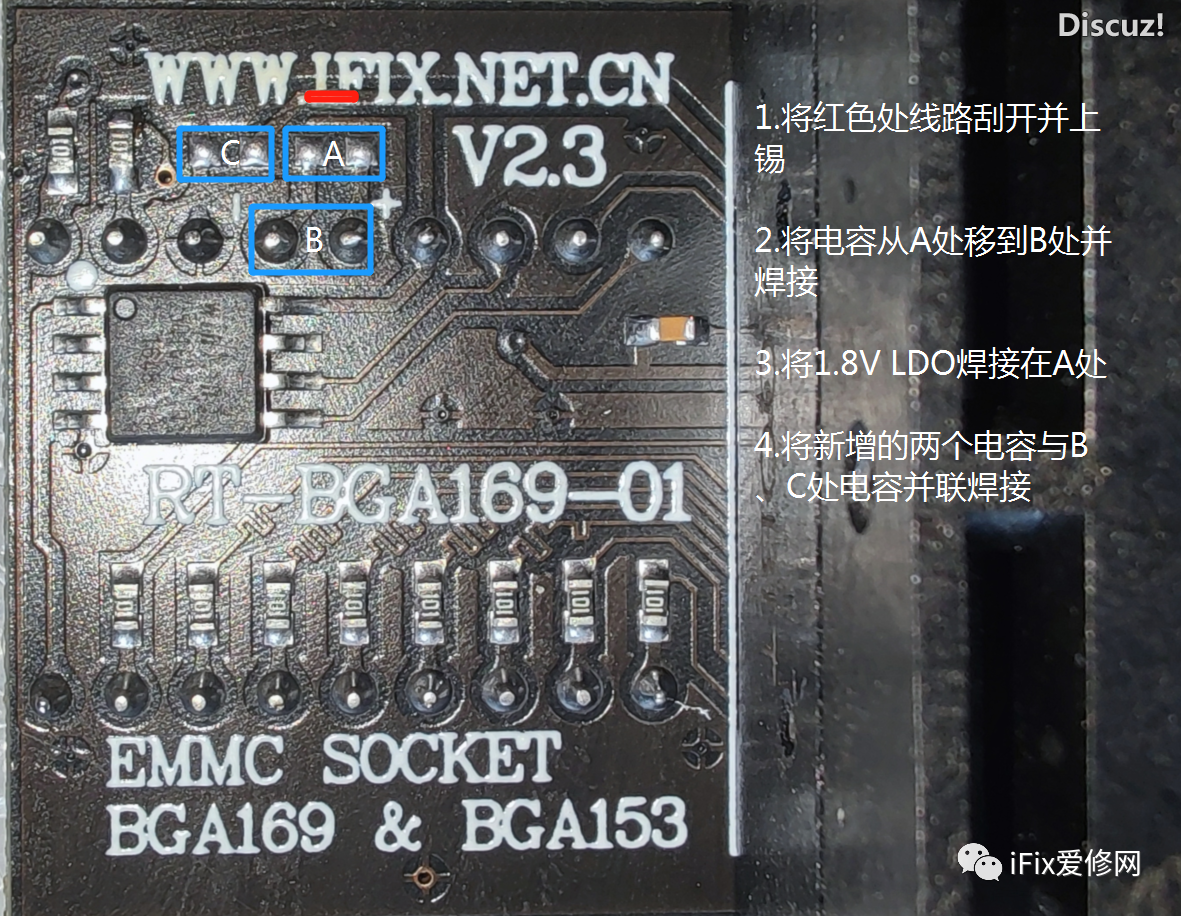

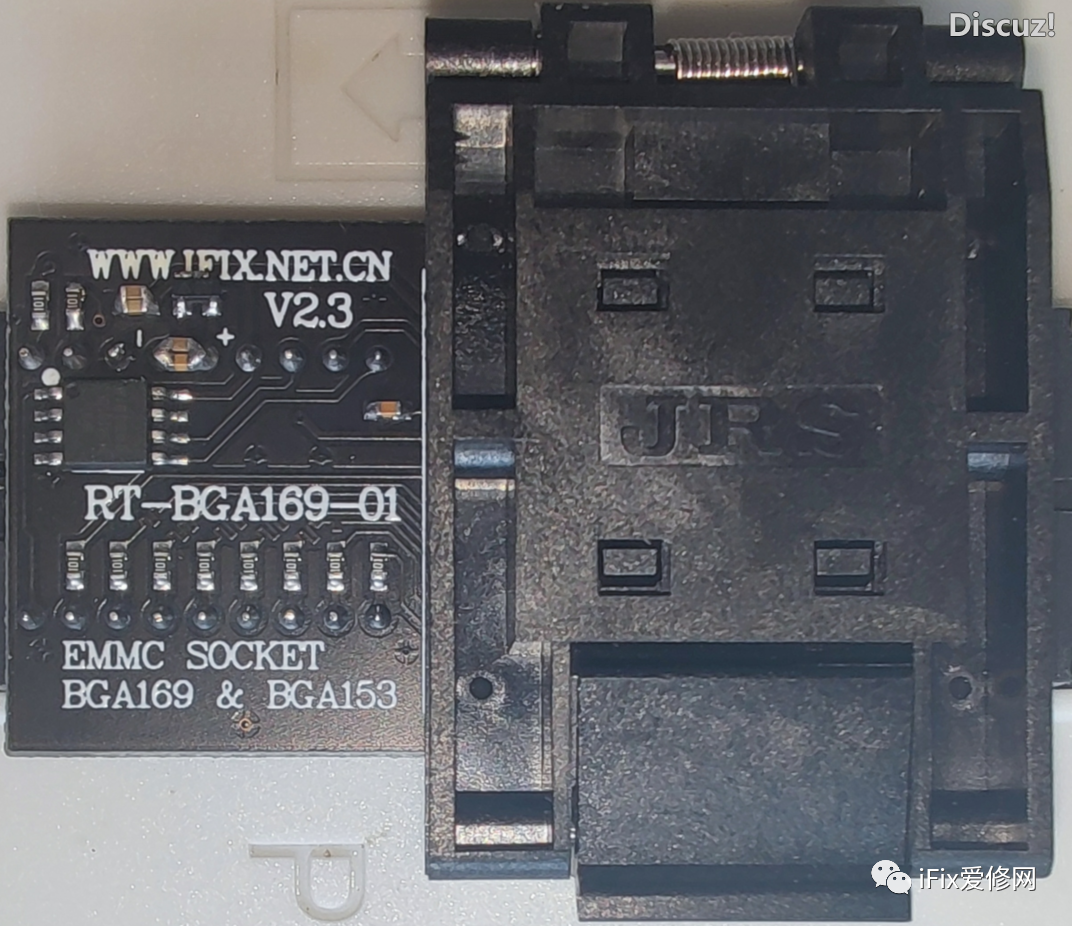

由于某品牌个别型号的eMMC【例如:H26M62002JPR,H26M51002KPR等需使用1.8V才能读写,而个别老版本eMMC又只支持3.3V读写,所以建议大家在原V2.3及其以下版本的转接座上做下改进,以兼容更多型号的eMMC:

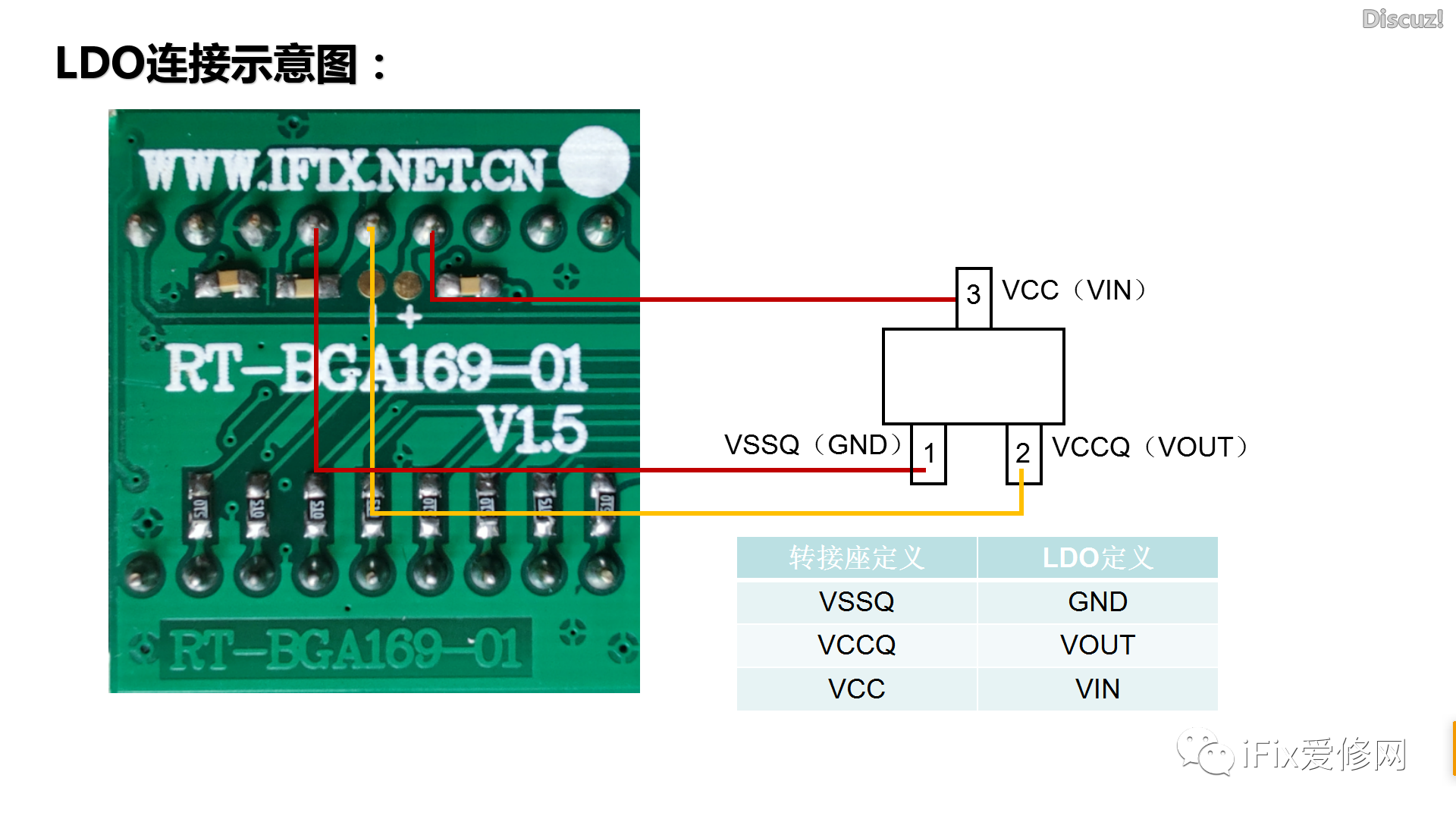

1.一个3.3V转1.8V的LDO,封装:SOT-23
2.两个1uF~4.7uF X7R贴片电容,封装:0603




LDO已测试可用型号

AP2120N-1.8TRG1(推荐)
AP2125N-1.8TRG1
RT9166-18GVL(Z00)

谨记:1117-1.8不可用,压差不合适。

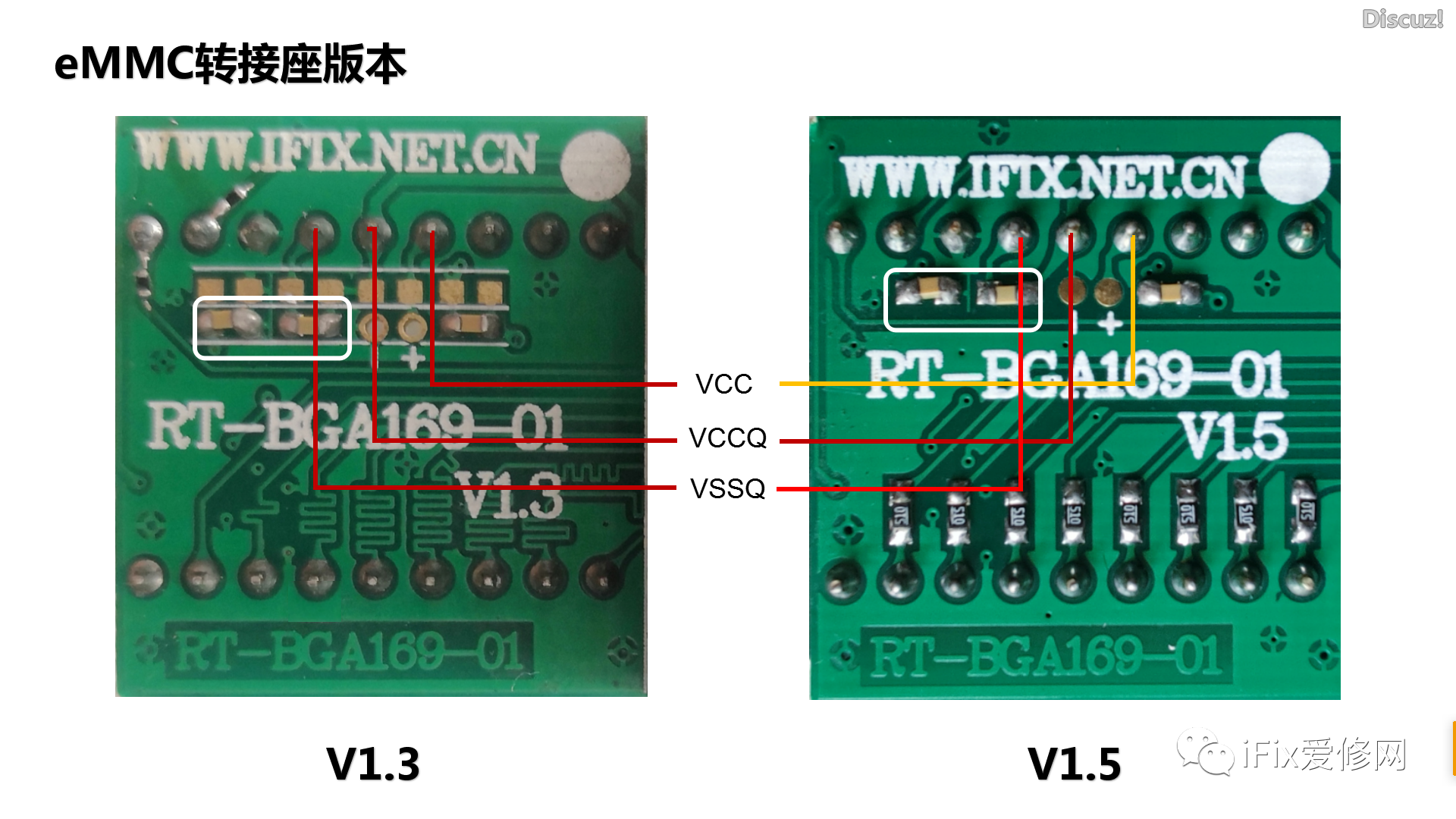

V2.0/V2.1/V2.2改造方法一样

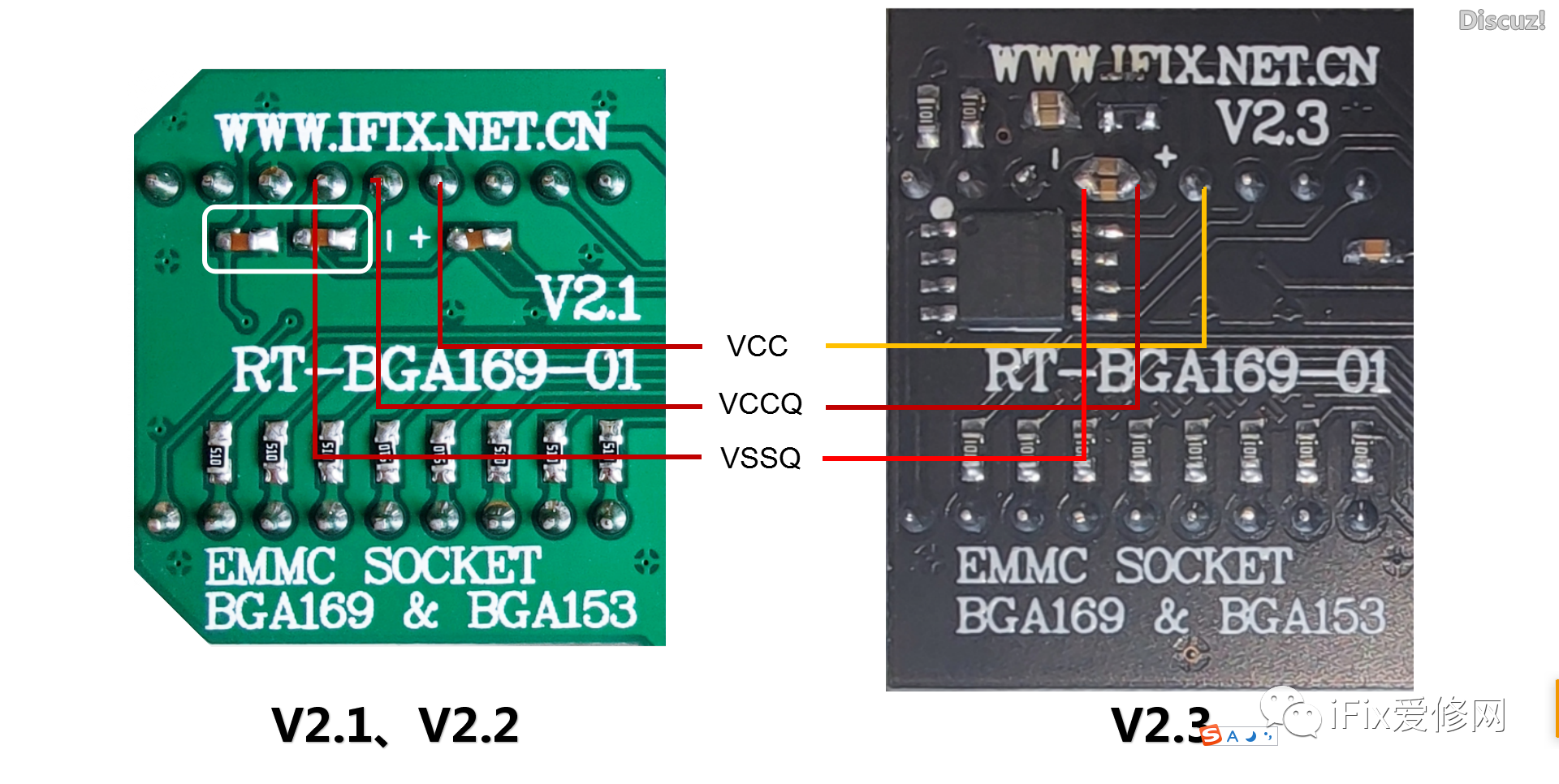

新增的电容请分别并接在白色圈内电容上。

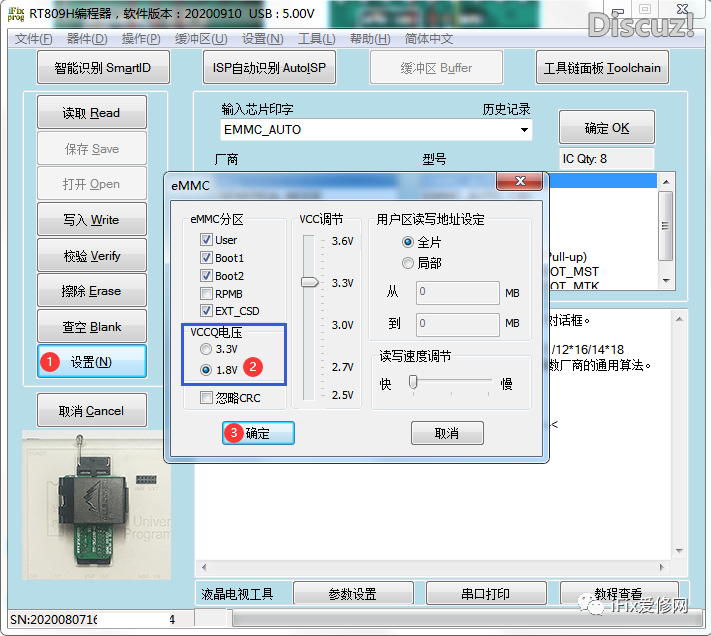

以上操作完成以后,在编程器软件的EMMC设置界面,VCCQ选择1.8V
或者3.3V后保存即可。


所需材料淘宝链接:

https://item.taobao.com/item.htm?spm=a1z10.3-c.w4023-3528353277.13.7a2735dfNCJg2b&id=620611289532

















Reply

Use magic Report

Post time: 2020-9-18 21:27:37
| Show all posts
电容大小不能大于4.7UF吗

Comments

按EMMC标准和LDO厂商的要求,1-4.7uF比较合适。  Post time 2020-9-19 13:20
Reply Support 1 Not support 0

Use magic Report

Post time: 2020-9-15 20:23:09
| Show all posts
技改材料10元包邮,想的真是周到贴心。
Reply Support Not support

Use magic Report

Post time: 2020-9-15 20:59:43
| Show all posts
自己动手。    开搞
Reply Support Not support

Use magic Report

Post time: 2020-9-18 22:39:21
| Show all posts
这等于出运费配件是送的
Reply Support Not support

Use magic Report

Post time: 2020-9-25 14:50:08
| Show all posts
我就想问下,电压调整只后,如果我调的是3.3V而上了一块要1.8V的EMMC会不会损坏EMMC,要不就搞点提示或者也搞个自动识别的就好。

Comments

离线座子默认3.3,个别非标的emmc芯片选3.3出错才需要选1.8。和板子上面供电无关,不会损坏芯片  Post time 2020-9-25 18:56
Reply Support Not support

Use magic Report

Post time: 2020-9-28 15:48:22
| Show all posts

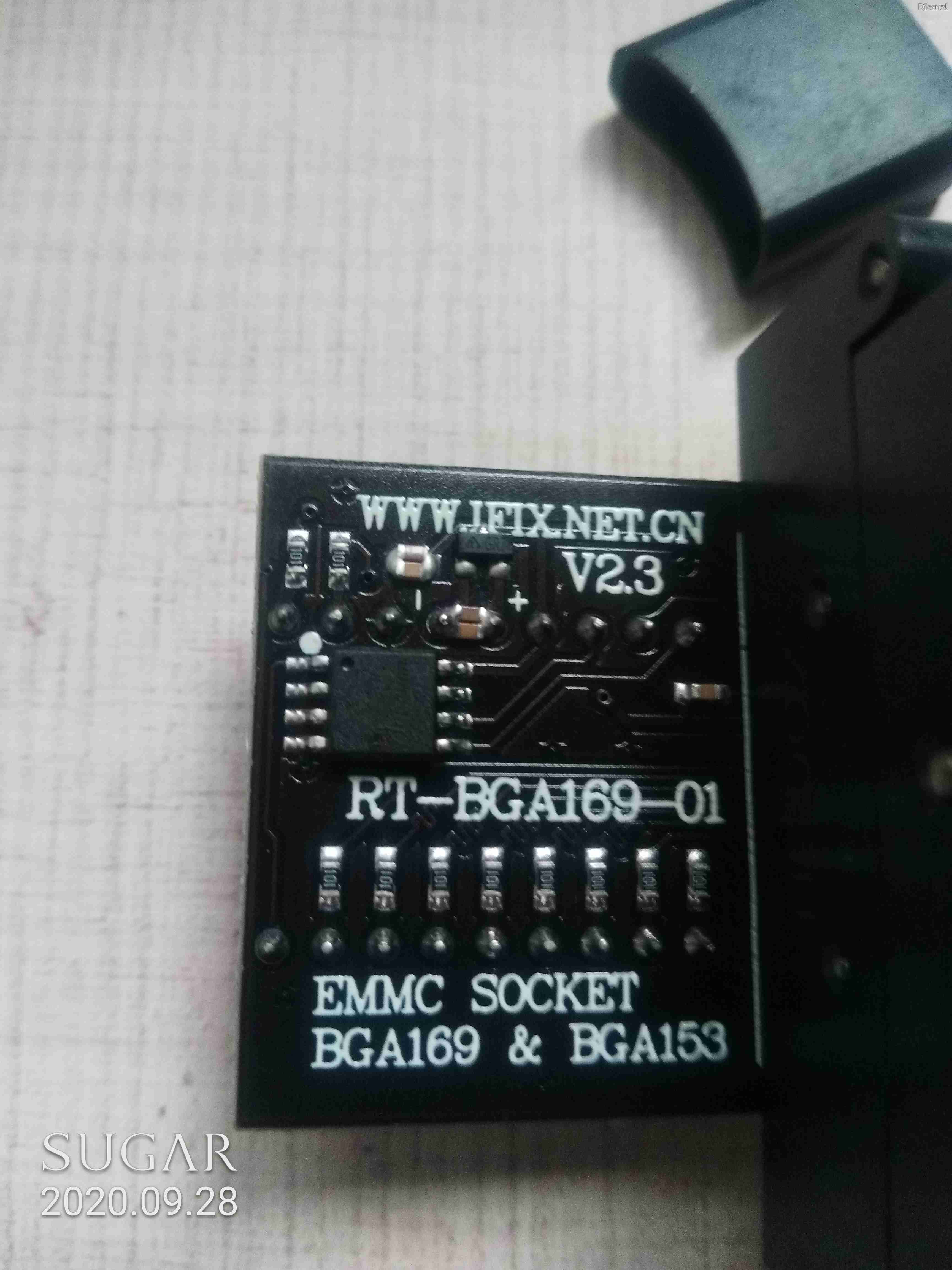

这应该是改成功了吧

Reply Support Not support

Use magic Report

Post time: 2020-9-30 16:54:32
| Show all posts
Thank you very much
Reply Support Not support

Use magic Report

Post time: 2020-10-28 23:07:25
| Show all posts
谢谢        很好的支持
